Set-up

Download the latest version of anb_gui and unzip to it's own directory.

tip

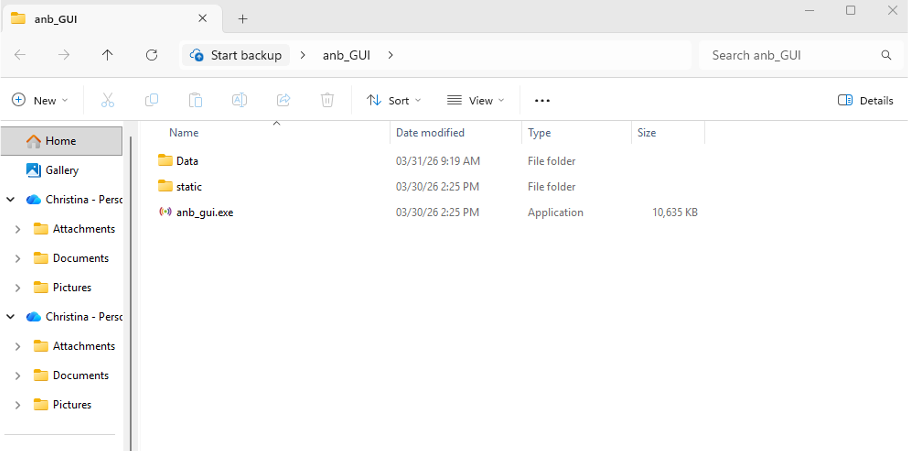

Extract the contents of the zip file into a dedicated folder.
Do not run the executable directly from the zip file, as this may cause operational issues.

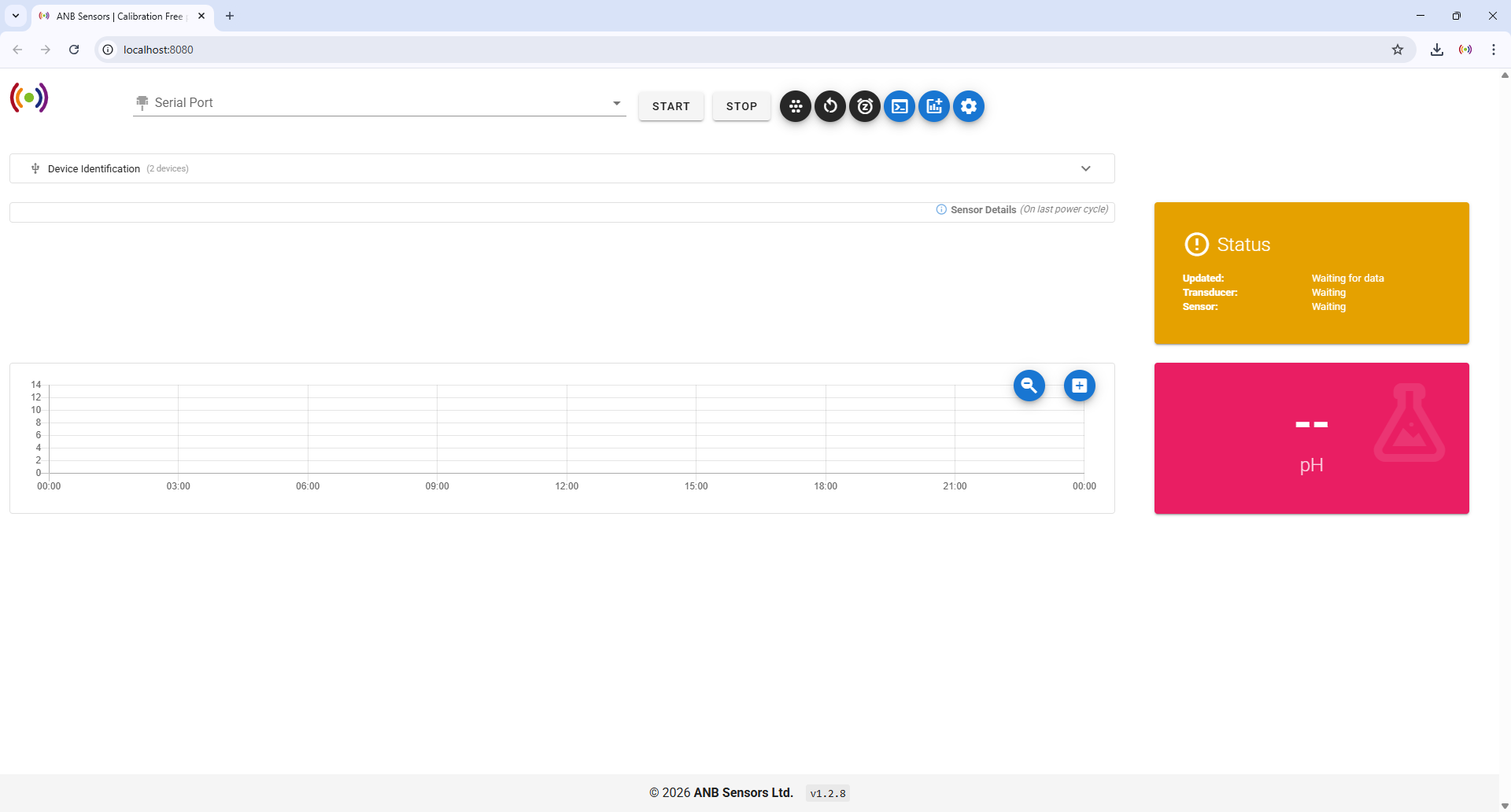

Run the anb_gui application. When the application starts, your default browser will open using the default listen port (8080) and baud rate (57600).

To override the default settings, follow these simple instructions

note

The version number can be found at the bottom of the screen. In some cases, the web browser may cache the old GUI version, so you might need to refresh the cache.

Since it uses a serial connection, anb_utils and the GUI cannot be run simultaneously.
