Data Transfer Unit
The Data Transfer Unit (DTU) allows easy access from the sensor to a USB of a computer.
There are two different models:
| Depth Rating | Function | |
|---|---|---|
| DTU | Non-Submersible | DTU |
| DTU-A | Non-Submersible | DTU and Analog out functions |
To set-up:

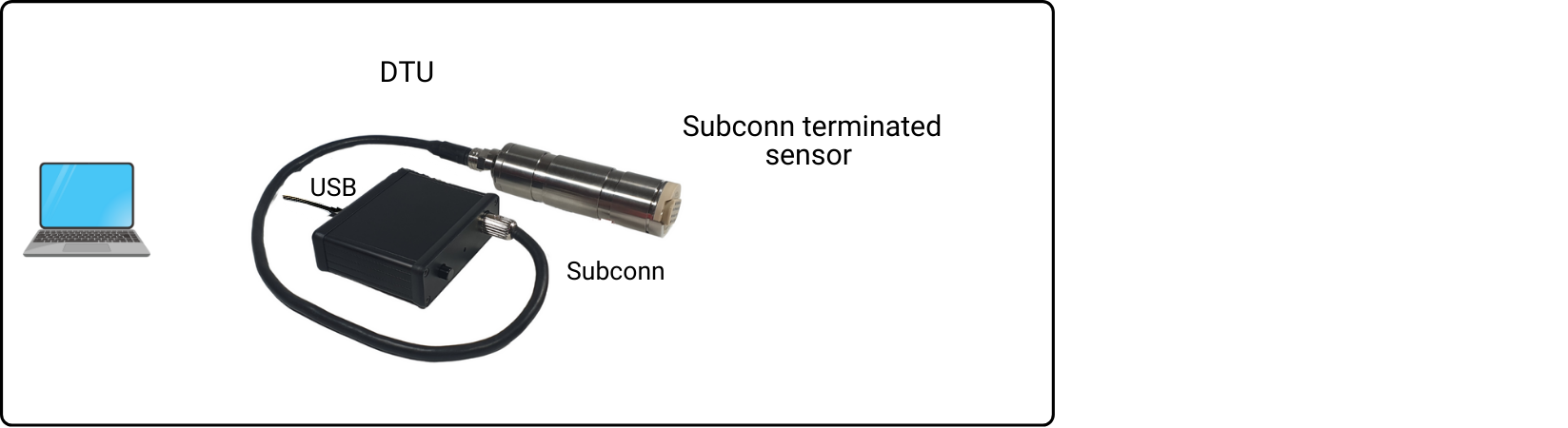

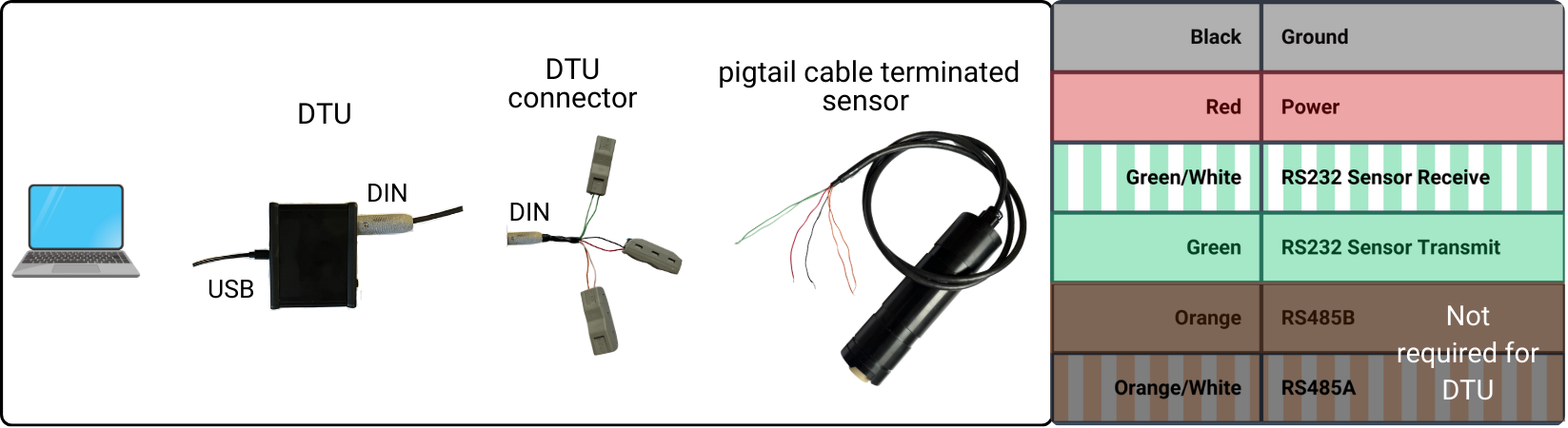

- Connect the sensor to the DTU and the USB to the computer
- Press the power on switch on the DTU and the light will come on to show the DTU has power
- Wait for the sensor to beep twice
You can now communicate to the sensor via anb_utils
Information on the DTU-A can be found here
For further support please contact support@anbsensors.com
